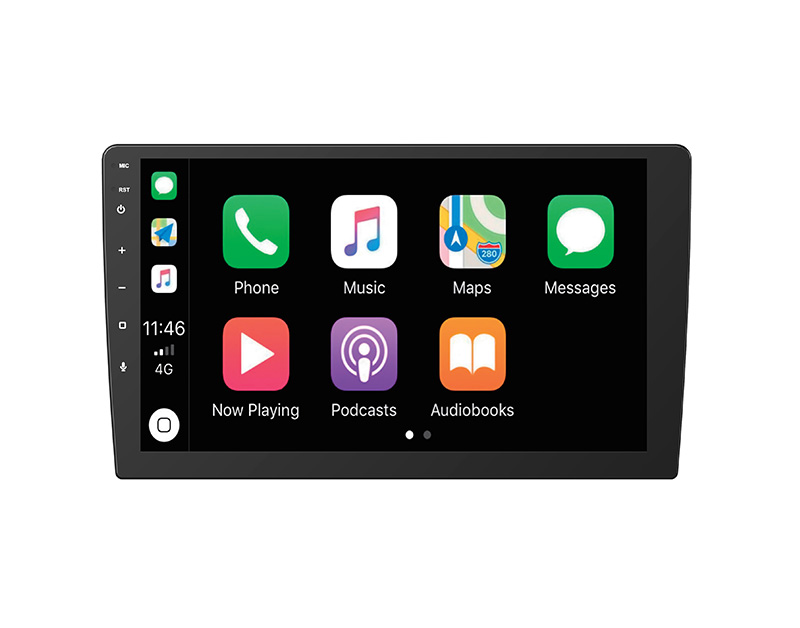

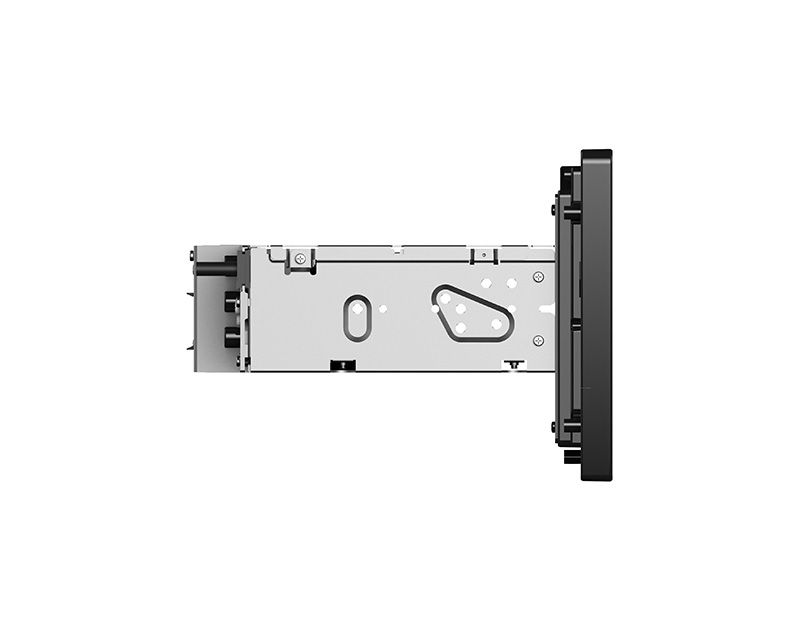

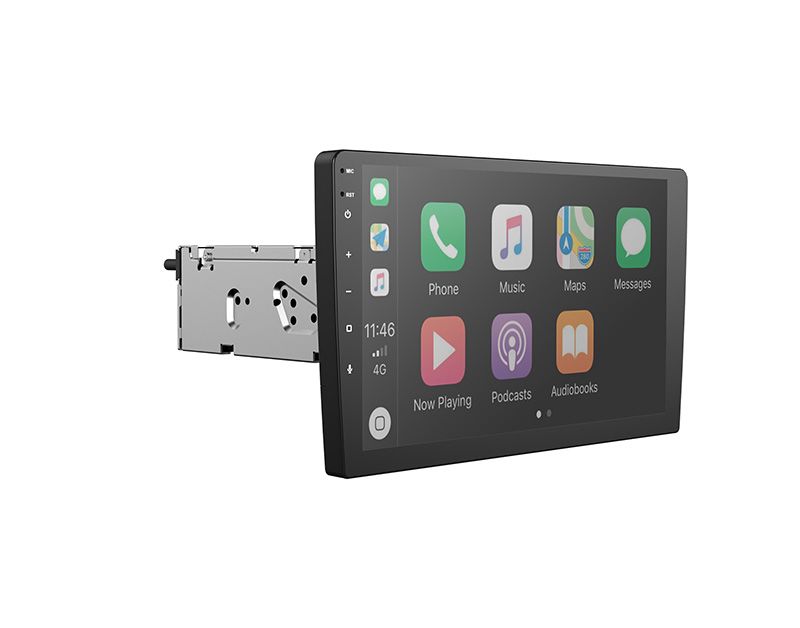

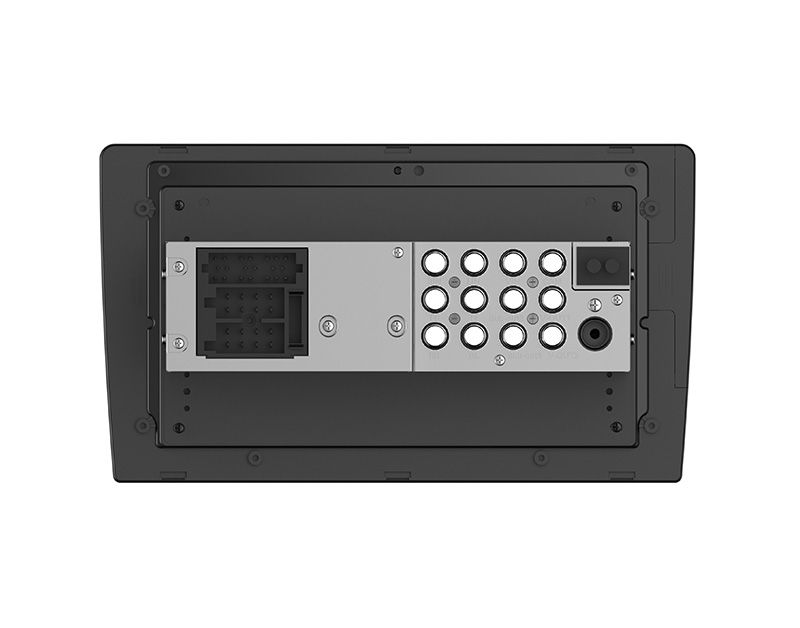

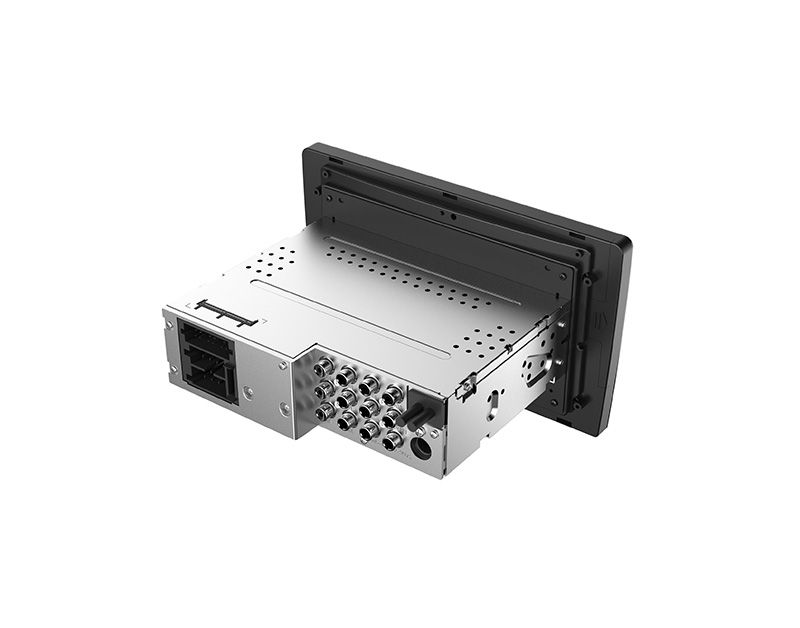

CarPlay 10.1" Siri SunPlus 8368-C Car Radio #120C

10.1" Multimedia Receiver Car Radio Manufacturer with Apple CarPlay License, TEF-6851 Radio IC and Panasonic MCU, Can Support Customer's Brand with Carplay License

Item: #120C


Share:

10.1-inch CarPlay Linux System Car Stereo with Apple License

SPECIFICATIONS

OS Linux 3.4.5
CPU SPHE 8368-C ARM Cortex-A9 single core
RAM 512M
Flash 512M
MCUMN101AF68G (Panasonic)
Wired Phone LinkCarplay with license/ Android Auto
LCD Screen 10.1-inch/1024*600/IPS/TN
Touch Screen G+G  (2.5D)
TFT drive IC SPHE 8368-C(bulit-in)
Amplifer IC TDA 7388
Radio IC TEF 6851
 Buletooth IC SPHE 888  V4.1
Video encoder HD(720p,1080i,1080p)
Video input One way reversing CVBS input + one way rear video input
Audio input AUX
Video output Two way rear video output
Audio output Line out 4ch Subwoofer 2ch
USB interface USB1(CP&AA); USB2
Multimedia Parameters
Music format MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:87.5MHz-108.0MHz,  AM:522KHZ-1622KHZ
Radio storage station FM/AM
Radio areaGlobal
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power   4*25W


FEATURES

  • CarPlay with License

  • Android Auto

  • Linux System

  • 10.1-inch Private Touch Screen

  • Support Different Plastic Frame

  • 2 Rear USB Input

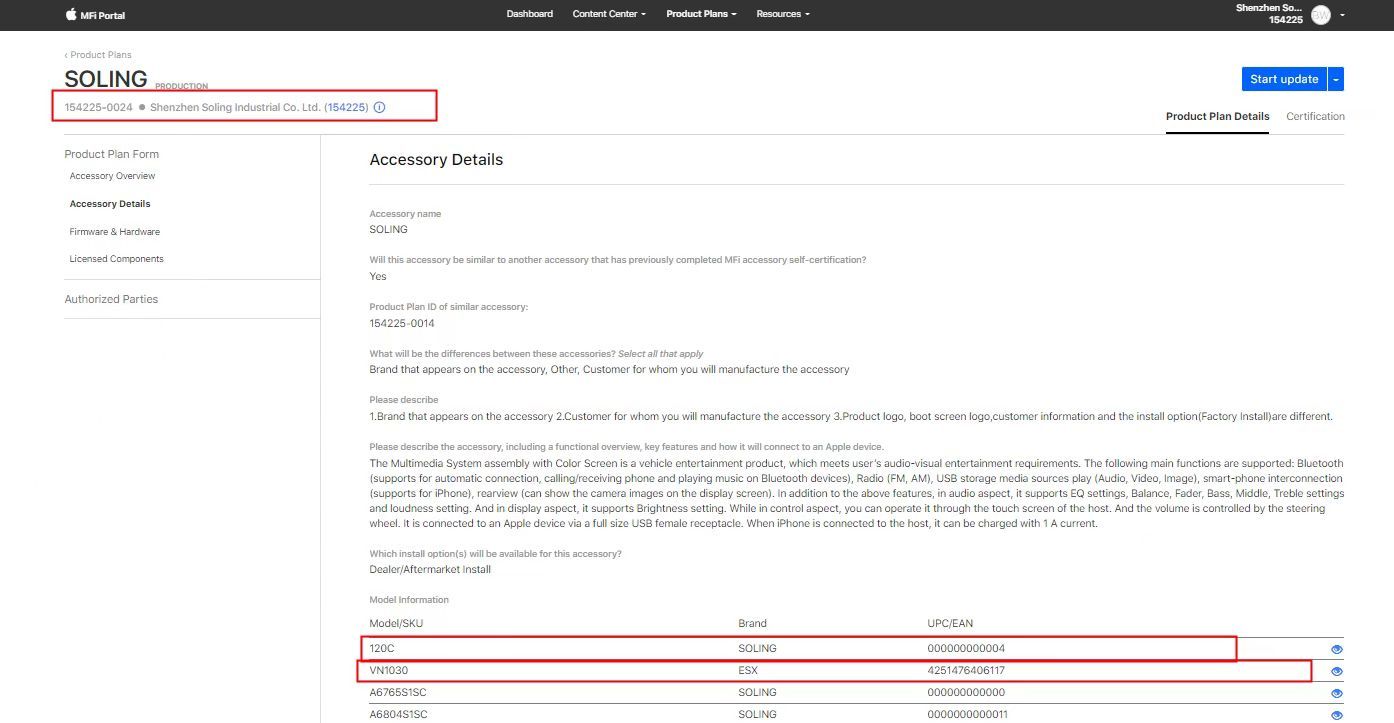

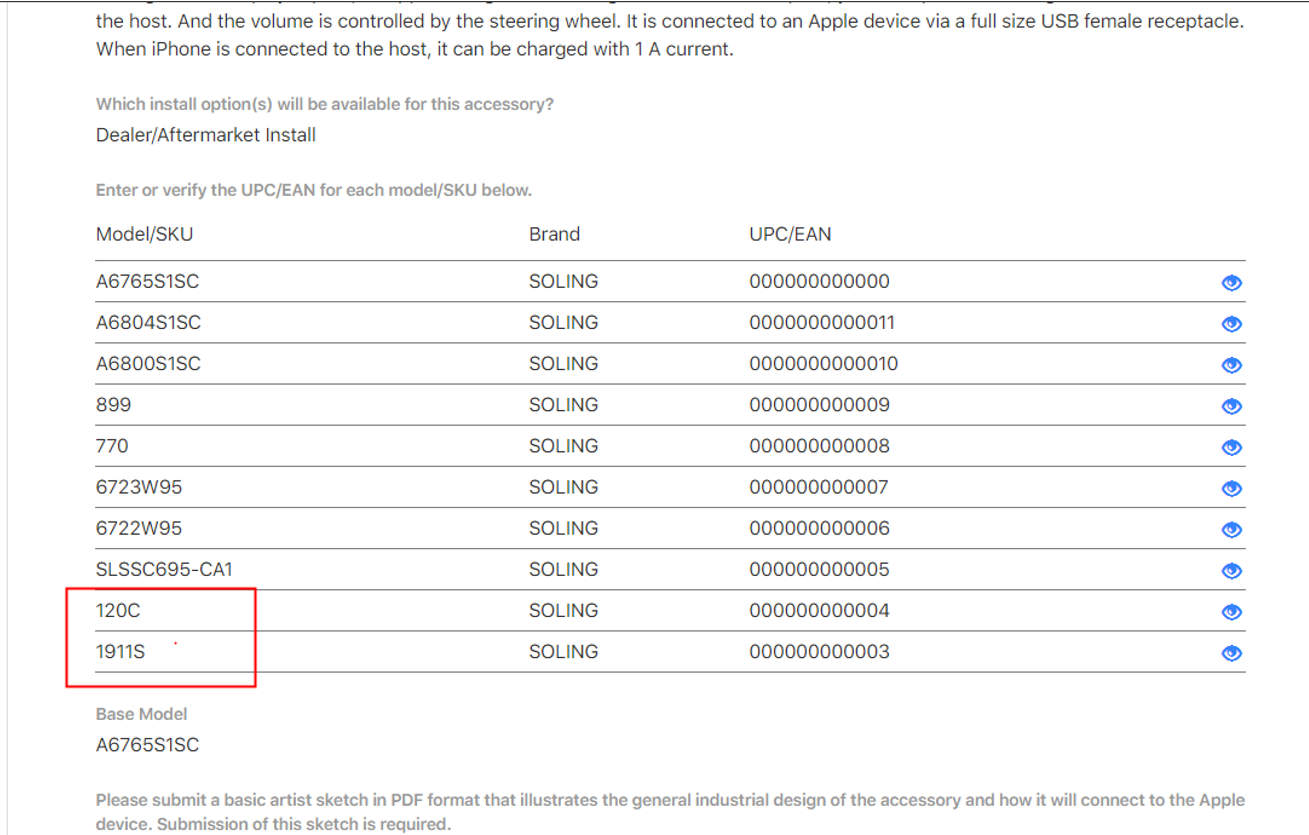

This is our Apple Carplay License:


We also can support your brand with an Apple license same as "SOLING"


CarPlay 10.1

CarPlay 10.1





WARRANTY

Warranty: 18 Months Manufacturer warranty.

We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6:00 am to 12:00 pm every day, you can contact our after-sales team online to get timely support.
