178mm*100mm 7-inch Universal Car Radio Supplier

Car MP5 Player, 33 Molds Can be Selected, Support Different Android Solutions, PX5/PX6/UIS7862/TS18/T3L/T5/T7 Optional

Item #: DP7001


Universal Car Stereos Catalog-DinPei(HK).pdf

Share:

Android 7-inch Car MP5 Player Car Stereo

SPECIFICATIONS

OS Android System
CPU PX5/PX6/UIS7862/TS18/T3L/T5/T7 Optional
RAM 1G/2G/3G/4G/6G
Flash 16/32G/64G/128G
LCD Screen 1920*1080/1024*600/1280*720/800*480
Touch Screen  G+G  (2.5D) or P+G
Phone LinkCarPlay / Android Auto / Mirror Link Optional
Amplifer IC TDA7851/TDA7388/YD7388 Optional
Radio IC TDA7708/TDA7786C/NXP6851/NXP6686 Optional
Buletooth IC V4.0-V5.0
Video encoder HD(720p,1080i,1080p)
Multimedia Parameters
Music format MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:87.5MHz-108.0MHz,  AM:522KHZ-1622KHZ
Radio storage station FM/AM/RDS
Radio area Global
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power  4*25W/4*45W


178mm*100mm 7-inch Universal Car Stereo Series

FEATURES

  • 178*100mm Universal Car Stereo Series



  • 7-inch Car Radio MP5 Receivers


  • Different Android solutions can be customized


  • 1G+16G, 2G+16G, 2G+32G, 2G+32G,  4G+64G, 6G+128G



178mm*100mm 7-inch Universal Car Radio Supplier

178mm*100mm 7-inch Universal Car Radio Supplier

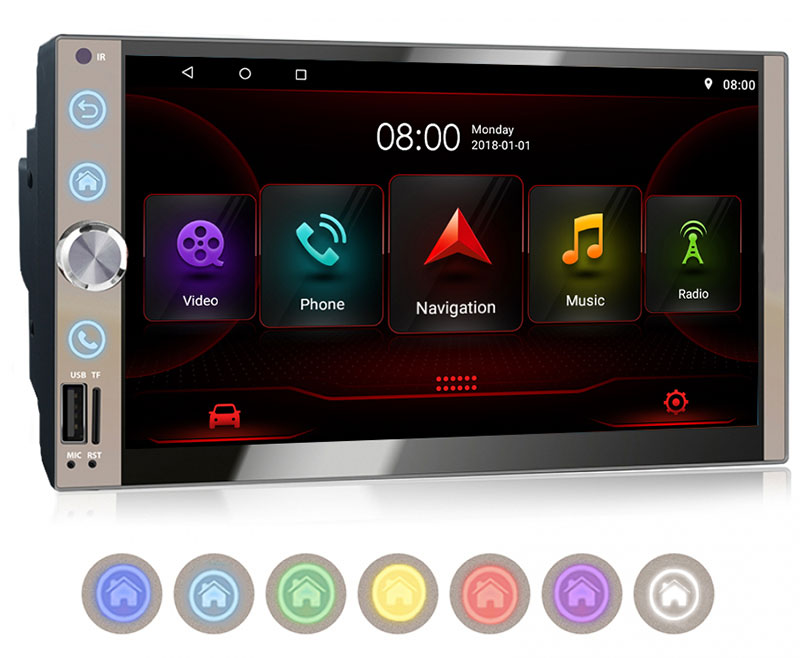

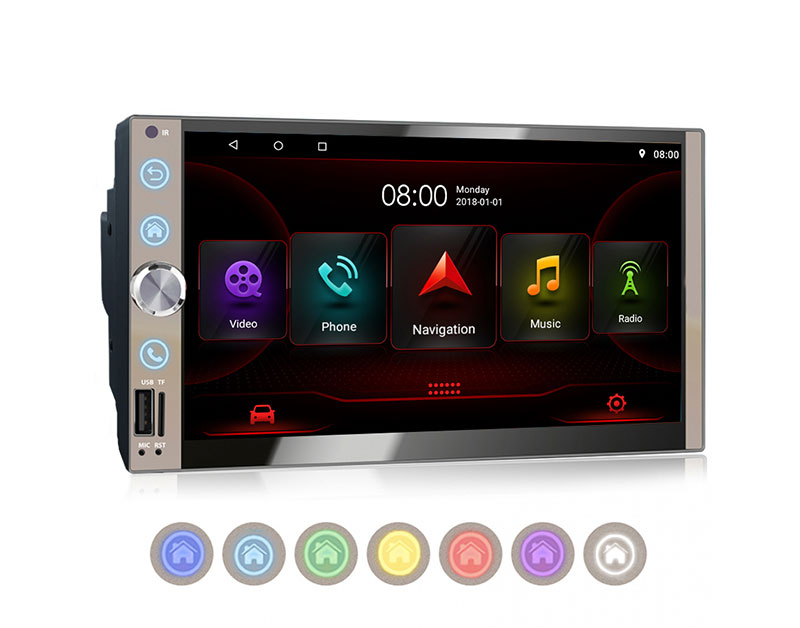

Top Features:

·2DIN (double DIN) Standard installation size

·7 inch / 18 cm screen

·Screen resolution of 1024x600 pixels

·HD format support

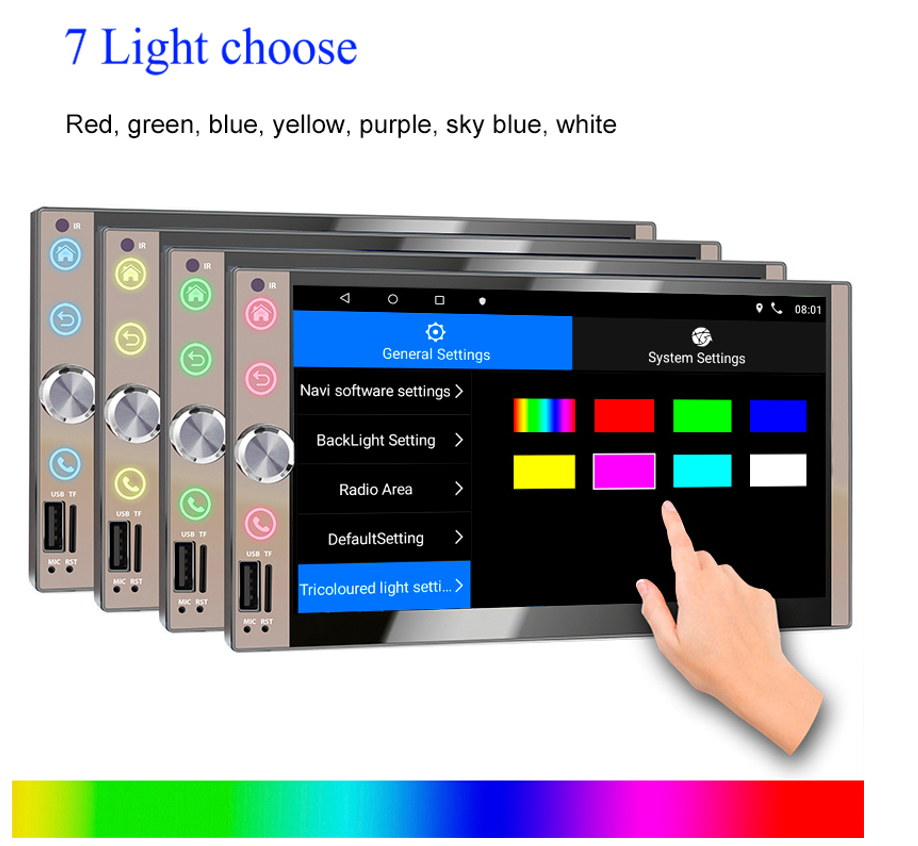

·7 Lighting colors: blue, turquoise, purple, red, green, white, yellow adjustable

·USB port and Micro SD card slot

·Without CD drive, no wear

·MP3 playback of a USB stick, micro SD card, and mobile phone

·Video playback of USB and Micro SD

·Supports Micro SD cards and USB sticks up to 128GB each

·Supports MPEG4, MP3, WMA, AVI, etc.

·Bluetooth hands-free function integrated

·ID3 Day, Date and Time Display

·Preset Equalizer: Pop, Rock, Classic

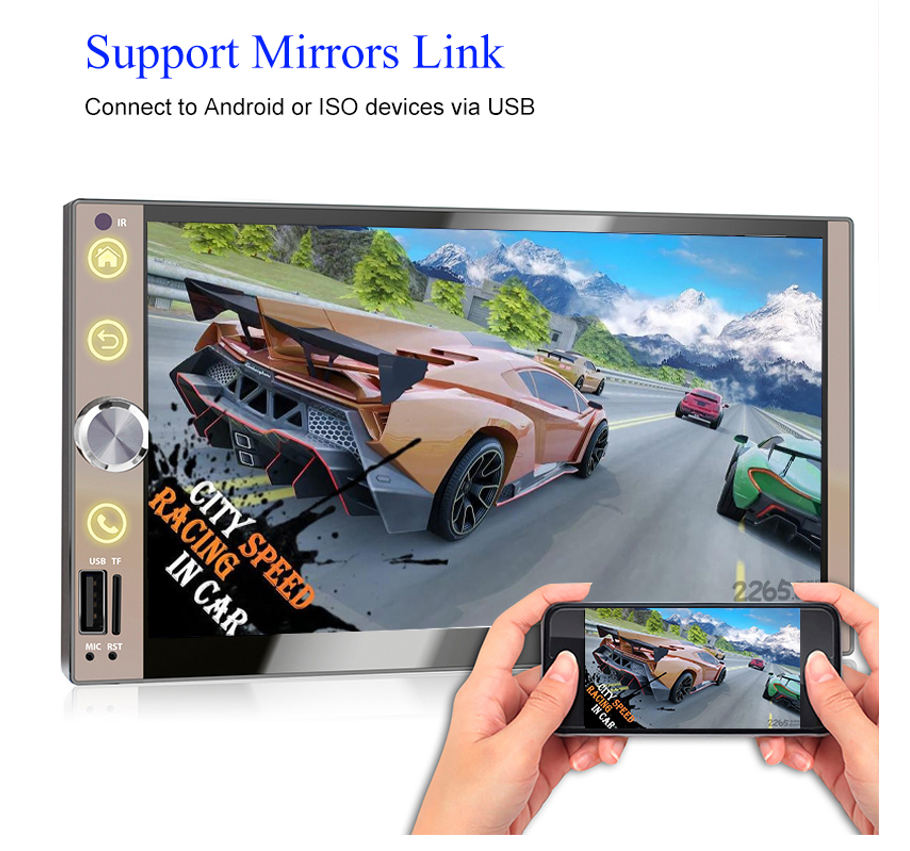

·Supports Mirror-link function for Android and IOS devices

·FM car radio with 18 station storage spaces

·Top power with max. 4 x 60 WATT

178mm*100mm 7-inch Universal Car Radio Supplier

178mm*100mm 7-inch Universal Car Radio Supplier

General

Mains voltage:12V DC

Impedance: 4 Ohm

Mounting dimensions: approx. TxWxH - approx. 109x183x103 mm

Colour: black, glossy

Size: 2DIN Standard built-in size

Mounting angle: +/- 30°

Monitor

Type: Colored TFT LCD Display

Triggering: 1024x600 pixels

16:9 Widescreen

Size: about 18 cm /7 inches

Connections: Front

Micro SD card slot

USB port

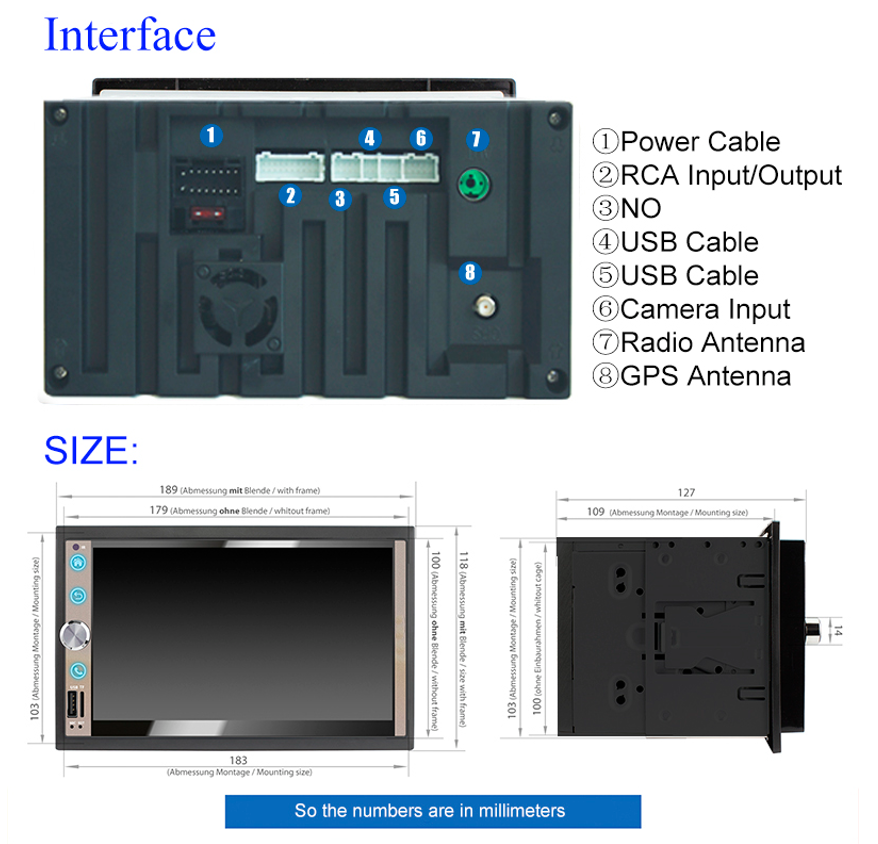

Connections: Back

Radio antenna connection

Video entrance

Video input (2x RCA)

Video output (2x RCA)

Audio output (4x RCA)

Bass output (1x RCA)

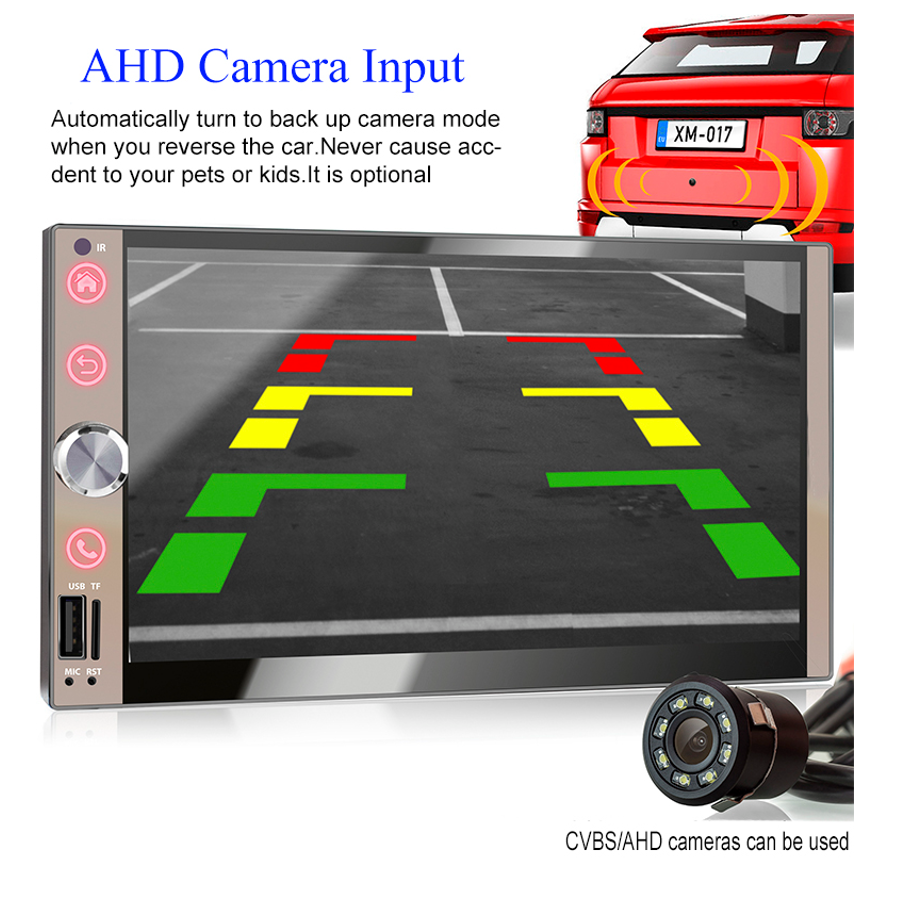

Control for rear-view camera

Supported Media & Systems

Media: MicroSD/TF, USB

Formats: MPEG, WMA, AVI, MP3, JPEG, and others

Bluetooth

Bluetooth version: 4.0

Profiles: A2DP, AVRCP, HFP, PBAP

Frequency: 2.4GHz Spectrum

Audio

Frequency range: 20Hz - 20KHz

Output power: 4 x 60W MOSFET

Output: for 4 loudspeakers

FM tuner part

Frequency range: 87.5-108 MHz

178mm*100mm 7-inch Universal Car Radio Supplier

178mm*100mm 7-inch Universal Car Radio Supplier

178mm*100mm 7-inch Universal Car Radio Supplier

WARRANTY

Warranty: 18 Months Manufacturer warranty

We provide warranty service of 18 months after the arrival of the goods and provide free accessories and maintenance instructions. If you have any questions within 18 hours from 6:00 am to 12:00 pm every day, you can contact our after-sales team online to get timely support.
