Linux Apple CarPlay

● Linux System Car Stereos

● Apple CarPlay with License and Android Auto Function

● Support Your Own Brand with Apple License

● Panasonic MCU


SPECIFICATIONS

OS Linux 3.4.5
CPU SPHE 8368-C ARM Cortex-A9 single core
RAM 512M
Flansh 512M
MCUMN101AF68G (Panasonic)
Wired Phone LinkCarplay / Android Auto
LCD Screen 1024*600 IPS
Touch Screen  G+G  (2.5D)
TFT drive IC SPHE 8368-C(bulit-in)
Amplifer IC TDA 7388
Radio IC TEF 6851
 Buletooth IC SPHE 888  V4.1
Video encoder HD(720p,1080i,1080p)
Video input One way reversing CVBS input + one way rear video input
Audio input AUX
Video output Two way rear video output
Audio output Line out 4ch Subwoofer 2ch
USB interface USB1(CP&AA); USB2
Multi media Parameters
Music format MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:87.5MHz-108.0MHz,  AM:522KHZ-1622KHZ
Radio storage station FM/AM
Radio areaSouth America
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power   4*25W

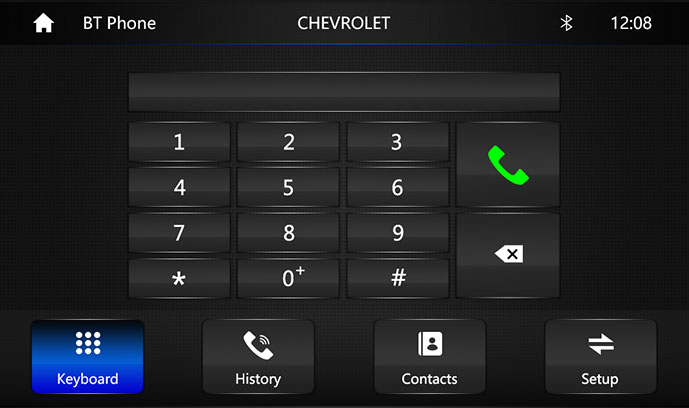

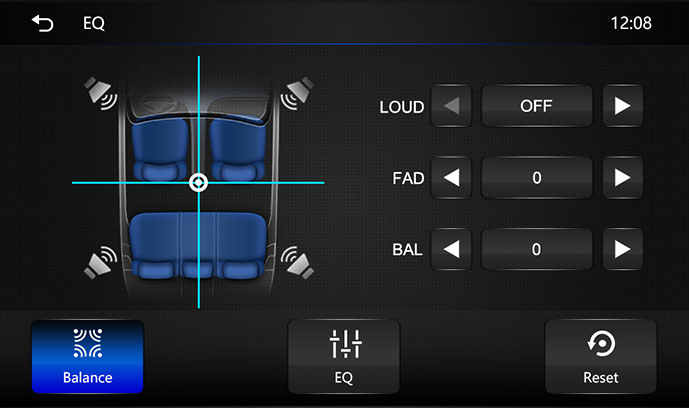

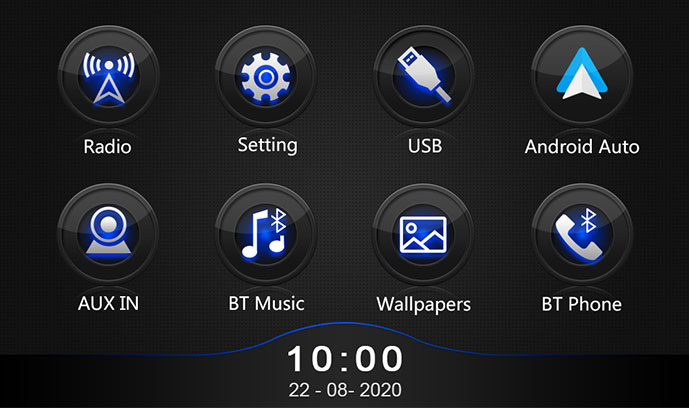

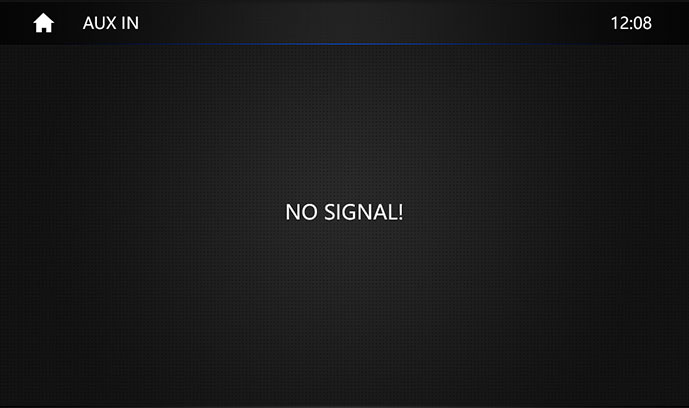

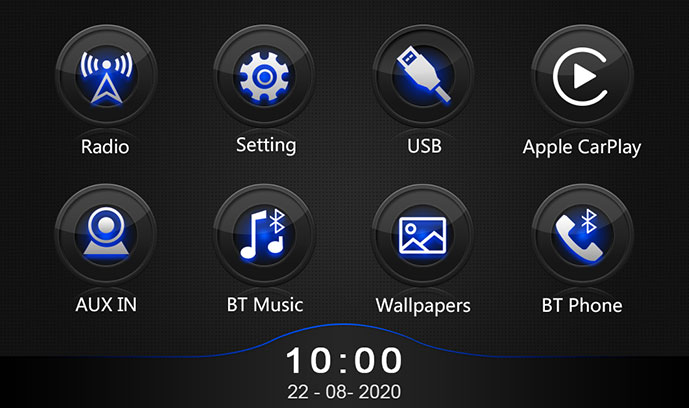

UI INTERFACE DESIGN

  • Linux Apple CarPlay

  • Linux Apple CarPlay

  • Linux Apple CarPlay

  • Linux Apple CarPlay

  • Linux Apple CarPlay

  • Linux Apple CarPlay
