PX6 Customized Android

● Rock-Chip PX6 Car Multimedia

● 6-Core with CP&AA

● NXP6686 Radio IC

● TDA7851 Power Amplifier IC

● Bluetooth 5.0


6-Core

Cotex A72 1.8GHZ

NXP 6686

TDA 7851

Bluetooth 5.0


SPECIFICATIONS

OS Android 10 System
CPU Rockchip PX6 ,Cortex-A72+A53, 6-Core
RAM 4G    SAMSUNG DDR3
Flansh 32G/64G
GPS  SIRF III
LCD Screen Hanstar Screen 1920*1080 IPS
Touch Screen  G+G  (2.5D)
Phone LinkCarPlay / Android Auto / Mirror Link
TFT drive IC Rockchip  PX6
Amplifer IC TDA 7851
Radio IC NXP 6686
Buletooth IC GOC-MD-6202A    V5.0
Video encoder HD(720p,1080i,1080p)
Video input One way reversing CVBS input + one way rear video input
Audio input AUX
Video output Two way rear video output
Audio output Line out 4ch Subwoofer 2ch
USB interface USB1(CP&AA); USB2
Multi media Parameters
Music format MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture formatJPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency rangeFM:87.5MHz-108.0MHz,  AM:522KHZ-1622KHZ
Radio storage station FM/AM/RDS
Radio area all over the world
Working voltage and memory current parameters
working voltage         9V~16V
working temperature     一20℃一70℃
Memory current    < 5MA
Power amplifier parameters
Test voltage 14.4V
Maximum output power  4*45W

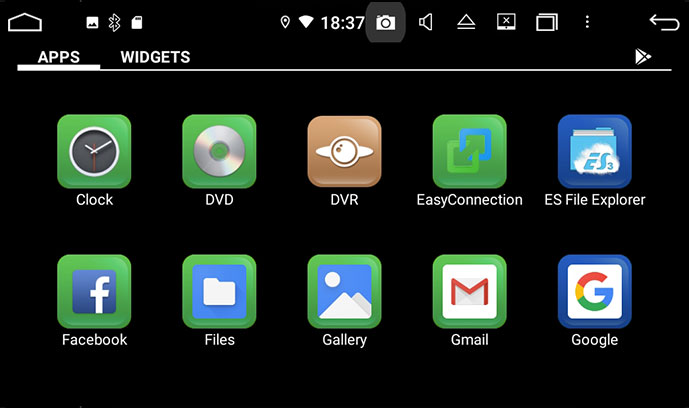

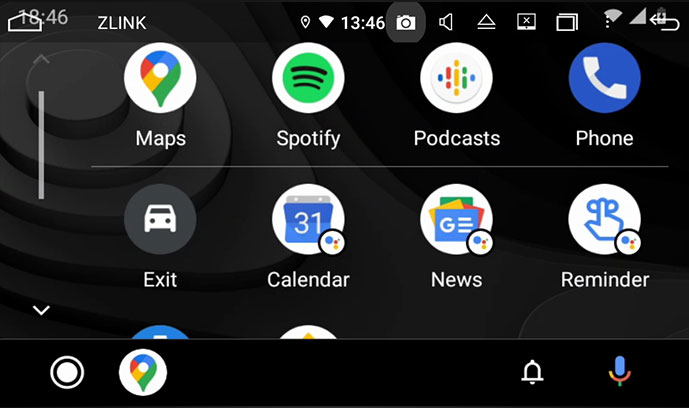

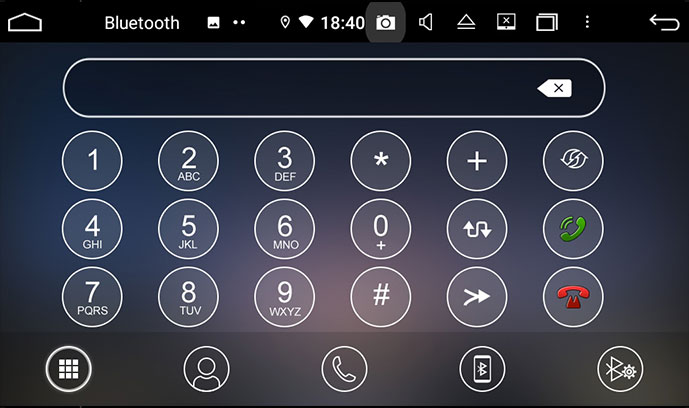

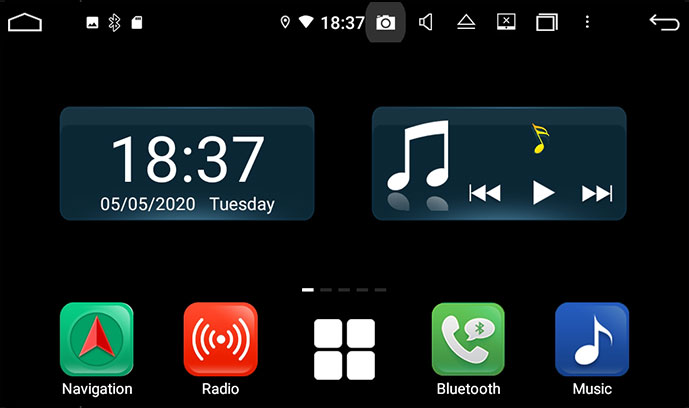

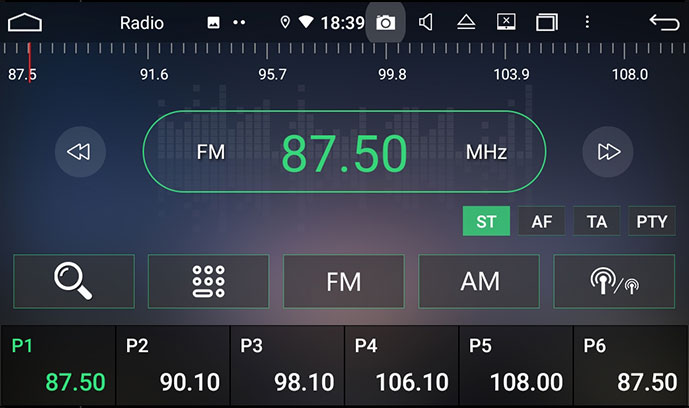

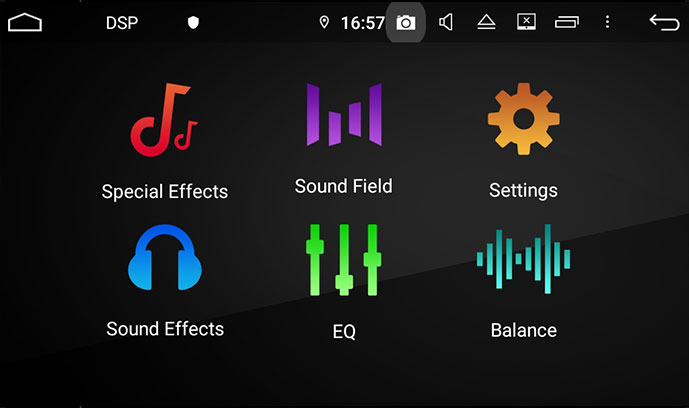

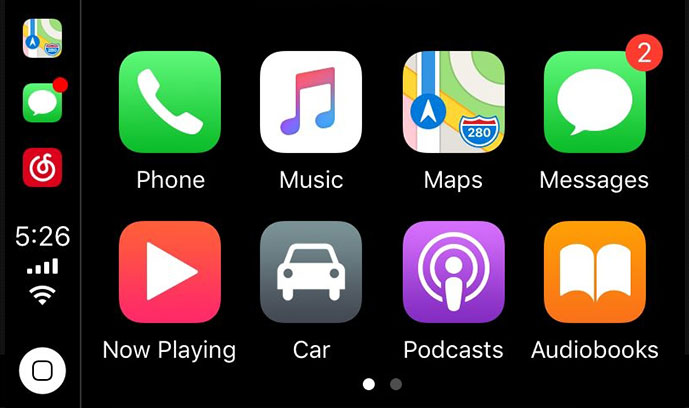

UI INTERFACE DESIGN

  • PX6 Customized Android

  • PX6 Customized Android

  • PX6 Customized Android

  • PX6 Customized Android

  • PX6 Customized Android

  • PX6 Customized Android

  • PX6 Customized Android
